시나리오
사용자 → QueryPie 로그인
→ Okta (OIDC)
→ ID Token 발급
→ Group Claim 확인
→ 접근 허용 / 차단
OIDC Application 생성
resource "okta_app_oauth" "querypie_oidc" {
label = "QueryPie-OIDC"
type = "web"
grant_types = [
"authorization_code"
]
redirect_uris = [
"https://querypie.example.com/oauth/callback"
]
response_types = [
"code"
]
token_endpoint_auth_method = "client_secret_basic"
}
App ↔ Group 할당
resource "okta_app_group_assignment" "querypie_admin_access" {
app_id = okta_app_oauth.querypie.id
group_id = okta_group.k8s_admins.id
}
resource "okta_app_group_assignment" "querypie_readonly_access" {
app_id = okta_app_oauth.querypie.id
group_id = okta_group.k8s_readonly.id
}
QueryPie OIDC 앱 정의
resource "okta_app_oauth" "querypie" {
label = "QueryPie"
type = "web"
grant_types = ["authorization_code"]
response_types = ["code"]
token_endpoint_auth_method = "client_secret_basic"
redirect_uris = [
"https://querypie.example.com/oauth/callback"
]
post_logout_redirect_uris = [
"https://querypie.example.com/logout"
]
}
OpenToFu 실행
[root@k8s-master terraform-access-control]# tofu plan
okta_user.user_readonly: Refreshing state... [id=00uyqkkr0zYwrqaiA697]
okta_group.k8s_readonly: Refreshing state... [id=00gypu3w4aLdzWj86697]
okta_group.k8s_admins: Refreshing state... [id=00gypu0d5yYlmpq6d697]
okta_user.user_admin: Refreshing state... [id=00uyqkipnrb2GMobo697]
okta_group_memberships.admin_membership: Refreshing state... [id=00gypu0d5yYlmpq6d697]
okta_group_memberships.readonly_membership: Refreshing state... [id=00gypu3w4aLdzWj86697]
OpenTofu used the selected providers to generate the following execution plan. Resource actions are indicated with the following symbols:
+ create
OpenTofu will perform the following actions:
# okta_app_group_assignment.querypie_admin_access will be created
+ resource "okta_app_group_assignment" "querypie_admin_access" {
+ app_id = (known after apply)
+ group_id = "00gypu0d5yYlmpq6d697"
+ id = (known after apply)
+ retain_assignment = false
}
# okta_app_group_assignment.querypie_readonly_access will be created
+ resource "okta_app_group_assignment" "querypie_readonly_access" {
+ app_id = (known after apply)
+ group_id = "00gypu3w4aLdzWj86697"
+ id = (known after apply)
+ retain_assignment = false
}
# okta_app_oauth.querypie will be created
+ resource "okta_app_oauth" "querypie" {
+ accessibility_self_service = false
+ authentication_policy = (known after apply)
+ auto_key_rotation = true
+ auto_submit_toolbar = false
+ client_id = (known after apply)
+ client_secret = (sensitive value)
+ consent_method = "TRUSTED"
+ grant_types = [
+ "authorization_code",
]
+ hide_ios = true
+ hide_web = true
+ id = (known after apply)
+ issuer_mode = "ORG_URL"
+ label = "QueryPie"
+ login_mode = "DISABLED"
+ logo_url = (known after apply)
+ name = (known after apply)
+ omit_secret = false
+ pkce_required = (known after apply)
+ post_logout_redirect_uris = [
+ "https://querypie.example.com/logout",
]
+ redirect_uris = [
+ "https://querypie.example.com/oauth/callback",
]
+ refresh_token_leeway = 0
+ refresh_token_rotation = "STATIC"
+ response_types = [
+ "code",
]
+ sign_on_mode = (known after apply)
+ status = "ACTIVE"
+ token_endpoint_auth_method = "client_secret_basic"
+ type = "web"
+ user_name_template = "${source.login}"
+ user_name_template_type = "BUILT_IN"
+ wildcard_redirect = "DISABLED"
}
# okta_app_oauth.querypie_oidc will be created
+ resource "okta_app_oauth" "querypie_oidc" {
+ accessibility_self_service = false
+ authentication_policy = (known after apply)
+ auto_key_rotation = true
+ auto_submit_toolbar = false
+ client_id = (known after apply)
+ client_secret = (sensitive value)
+ consent_method = "TRUSTED"
+ grant_types = [
+ "authorization_code",
]
+ hide_ios = true
+ hide_web = true
+ id = (known after apply)
+ issuer_mode = "ORG_URL"
+ label = "QueryPie-OIDC"
+ login_mode = "DISABLED"
+ logo_url = (known after apply)
+ name = (known after apply)
+ omit_secret = false
+ pkce_required = (known after apply)
+ redirect_uris = [
+ "https://querypie.example.com/oauth/callback",
]
+ refresh_token_leeway = 0
+ refresh_token_rotation = "STATIC"
+ response_types = [
+ "code",
]
+ sign_on_mode = (known after apply)
+ status = "ACTIVE"
+ token_endpoint_auth_method = "client_secret_basic"
+ type = "web"
+ user_name_template = "${source.login}"
+ user_name_template_type = "BUILT_IN"
+ wildcard_redirect = "DISABLED"
}
Plan: 4 to add, 0 to change, 0 to destroy.
─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
Note: You didn't use the -out option to save this plan, so OpenTofu can't guarantee to take exactly these actions if you run "tofu apply" now.
[root@k8s-master terraform-access-control]# tofu apply
okta_group.k8s_admins: Refreshing state... [id=00gypu0d5yYlmpq6d697]
okta_group.k8s_readonly: Refreshing state... [id=00gypu3w4aLdzWj86697]
okta_user.user_admin: Refreshing state... [id=00uyqkipnrb2GMobo697]
okta_user.user_readonly: Refreshing state... [id=00uyqkkr0zYwrqaiA697]
okta_group_memberships.readonly_membership: Refreshing state... [id=00gypu3w4aLdzWj86697]
okta_group_memberships.admin_membership: Refreshing state... [id=00gypu0d5yYlmpq6d697]
OpenTofu used the selected providers to generate the following execution plan. Resource actions are indicated with the following symbols:
+ create
OpenTofu will perform the following actions:
# okta_app_group_assignment.querypie_admin_access will be created
+ resource "okta_app_group_assignment" "querypie_admin_access" {
+ app_id = (known after apply)
+ group_id = "00gypu0d5yYlmpq6d697"
+ id = (known after apply)
+ retain_assignment = false
}
# okta_app_group_assignment.querypie_readonly_access will be created
+ resource "okta_app_group_assignment" "querypie_readonly_access" {
+ app_id = (known after apply)
+ group_id = "00gypu3w4aLdzWj86697"
+ id = (known after apply)
+ retain_assignment = false
}
# okta_app_oauth.querypie will be created
+ resource "okta_app_oauth" "querypie" {
+ accessibility_self_service = false
+ authentication_policy = (known after apply)
+ auto_key_rotation = true
+ auto_submit_toolbar = false
+ client_id = (known after apply)
+ client_secret = (sensitive value)
+ consent_method = "TRUSTED"
+ grant_types = [
+ "authorization_code",
]
+ hide_ios = true
+ hide_web = true
+ id = (known after apply)
+ issuer_mode = "ORG_URL"
+ label = "QueryPie"
+ login_mode = "DISABLED"
+ logo_url = (known after apply)
+ name = (known after apply)
+ omit_secret = false
+ pkce_required = (known after apply)
+ post_logout_redirect_uris = [
+ "https://querypie.example.com/logout",
]
+ redirect_uris = [
+ "https://querypie.example.com/oauth/callback",
]
+ refresh_token_leeway = 0
+ refresh_token_rotation = "STATIC"
+ response_types = [
+ "code",
]
+ sign_on_mode = (known after apply)
+ status = "ACTIVE"
+ token_endpoint_auth_method = "client_secret_basic"
+ type = "web"
+ user_name_template = "${source.login}"
+ user_name_template_type = "BUILT_IN"
+ wildcard_redirect = "DISABLED"
}
# okta_app_oauth.querypie_oidc will be created
+ resource "okta_app_oauth" "querypie_oidc" {
+ accessibility_self_service = false
+ authentication_policy = (known after apply)
+ auto_key_rotation = true
+ auto_submit_toolbar = false
+ client_id = (known after apply)
+ client_secret = (sensitive value)
+ consent_method = "TRUSTED"
+ grant_types = [
+ "authorization_code",
]
+ hide_ios = true
+ hide_web = true
+ id = (known after apply)
+ issuer_mode = "ORG_URL"
+ label = "QueryPie-OIDC"
+ login_mode = "DISABLED"
+ logo_url = (known after apply)
+ name = (known after apply)
+ omit_secret = false
+ pkce_required = (known after apply)
+ redirect_uris = [
+ "https://querypie.example.com/oauth/callback",
]
+ refresh_token_leeway = 0
+ refresh_token_rotation = "STATIC"
+ response_types = [
+ "code",
]
+ sign_on_mode = (known after apply)
+ status = "ACTIVE"
+ token_endpoint_auth_method = "client_secret_basic"
+ type = "web"
+ user_name_template = "${source.login}"
+ user_name_template_type = "BUILT_IN"
+ wildcard_redirect = "DISABLED"
}
Plan: 4 to add, 0 to change, 0 to destroy.
Do you want to perform these actions?
OpenTofu will perform the actions described above.
Only 'yes' will be accepted to approve.
Enter a value: yes
okta_app_oauth.querypie_oidc: Creating...
okta_app_oauth.querypie: Creating...
okta_app_oauth.querypie_oidc: Creation complete after 2s [id=0oayqnz1oust7db4y697]
okta_app_oauth.querypie: Creation complete after 2s [id=0oayqnzjf6dk2eKYE697]
okta_app_group_assignment.querypie_readonly_access: Creating...
okta_app_group_assignment.querypie_admin_access: Creating...
okta_app_group_assignment.querypie_admin_access: Creation complete after 1s [id=00gypu0d5yYlmpq6d697]
okta_app_group_assignment.querypie_readonly_access: Creation complete after 1s [id=00gypu3w4aLdzWj86697]
Apply complete! Resources: 4 added, 0 changed, 0 destroyed.

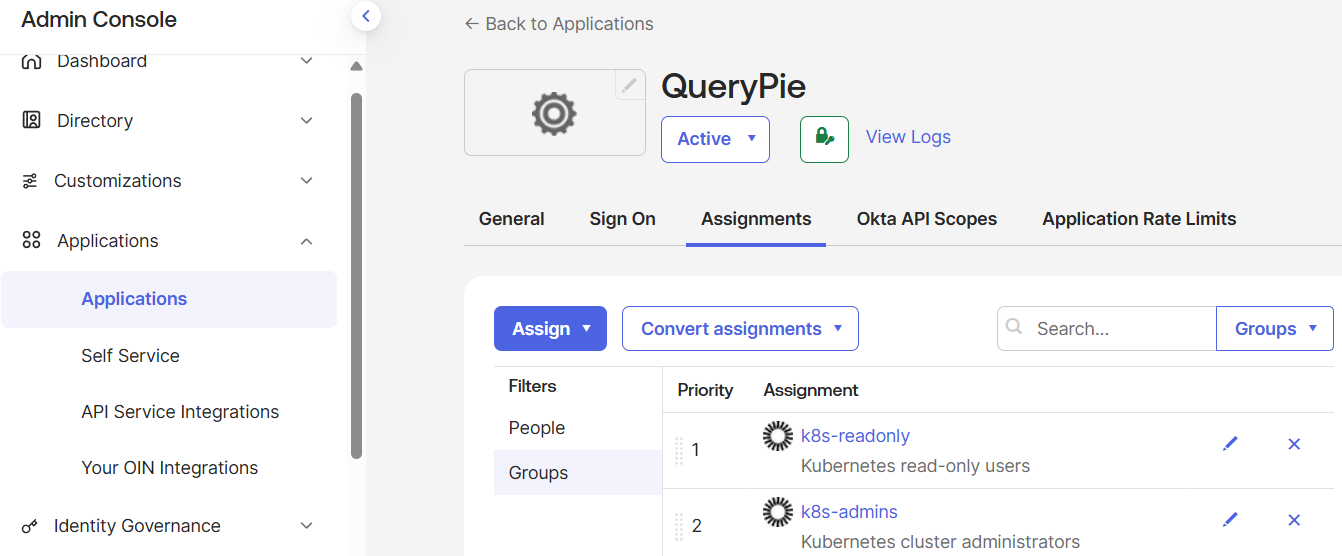

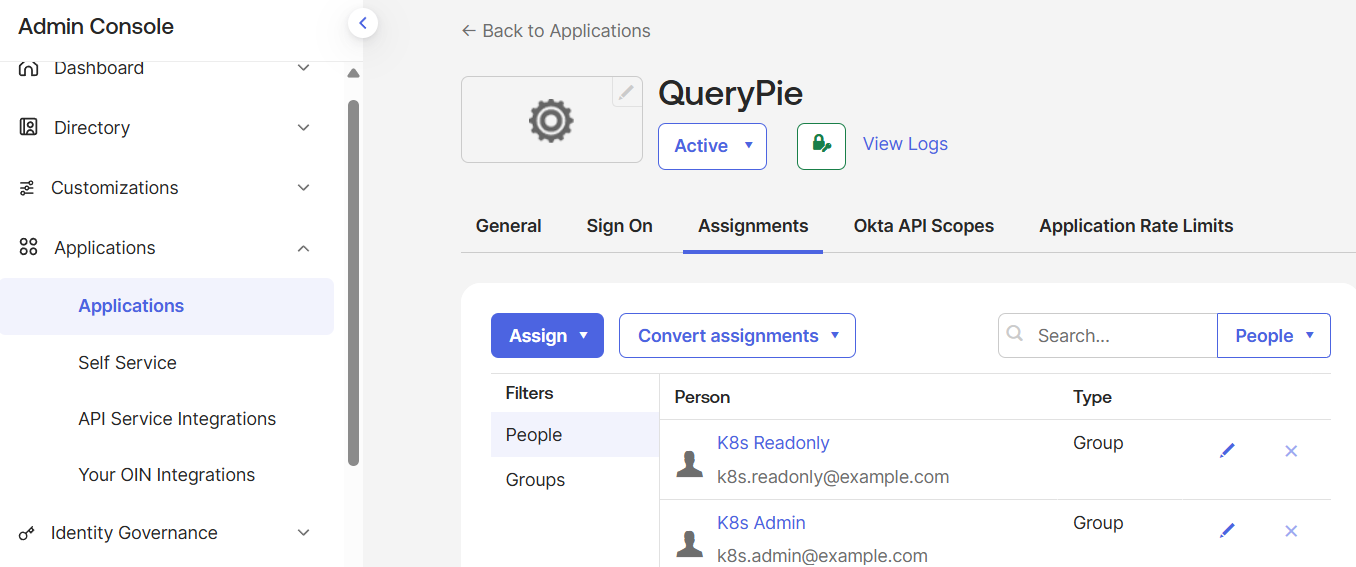

Console 확인
 |
 |
QueryPie 연동의 실제 흐름
[사용자]
↓ (Okta Dashboard 클릭)
QueryPie ← 여기서만 People / Group 할당 필요
↓ (Redirect)
QueryPie-OIDC (OIDC Client)
↓
Okta Authorization Server
↓
ID Token / Access Token 발급 (groups 포함)
↓
QueryPie Backend
# README.md
## OIDC Application Integration (QueryPie Scenario)
- Okta를 Identity Provider(IdP)로 사용
- OIDC 기반 Application 생성
- 그룹 기반 App 접근제어 구현
- QueryPie 등 접근제어 솔루션 연동 가능한 구조 설계'Okta+QueryPie+k8s' 카테고리의 다른 글
